STRIKE PRODUCT / 01
IN DEVELOPMENTAssembly drawings,
without the drag.

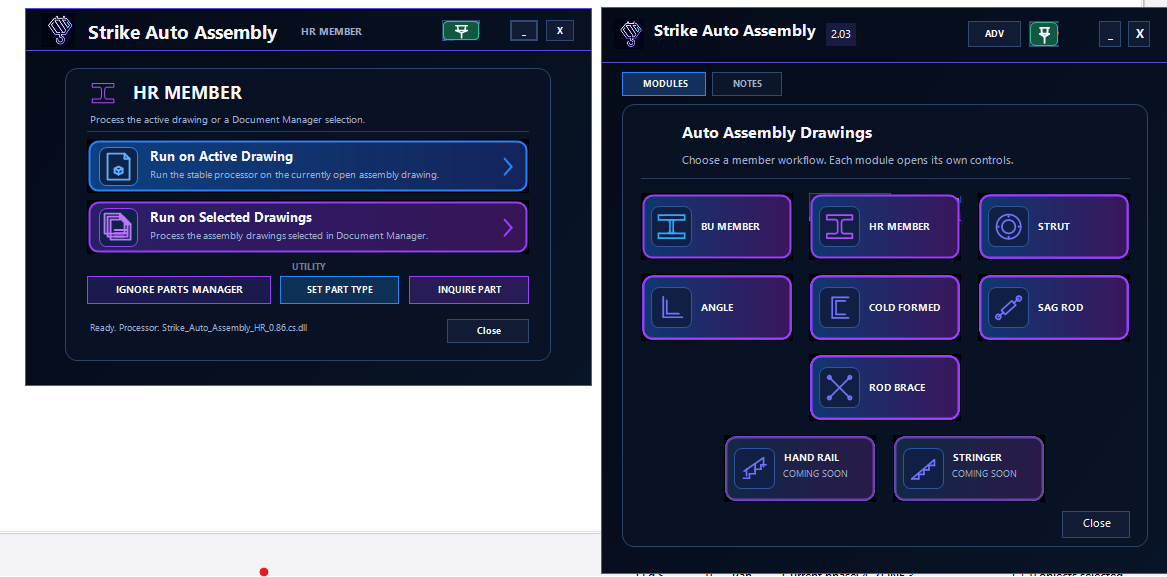

STRIKE Auto Assembly gives steel detailers a control center for repeatable, member-specific assembly drawing work inside Tekla Structures.
Development build Current product status7 Member processors in scopeTekla 2020 Validation reference
THE CONTROL CENTER
Choose the member.
Choose the scope.
Open the matching member workflow, process the current drawing or a selected batch, then review the result as part of your normal professional release process.
MANUAL ROUTE → STRIKE ROUTE
Review the current
development workflow.
The full recorded demo will follow after validation. The current workflow is shown as four visible steps so its intended production route can be reviewed without implying a finished release.
- 01
Select the drawing scope
Use the active drawing or selected drawings from Document Manager.
- 02
Choose the member processor
Open the route that matches the assembly type.
- 03
Run the workflow
Apply the member-aware drawing process to the selected scope.
- 04
Review the result
Check dimensions, sections, marks and the final production drawing before release.
BUILT FROM THE WORKFLOW
Automation with
steel logic behind it.
Member-aware logic
Choose the processor that matches the steel member so drawing treatment follows the assembly type, not a generic routine.
Part classification
The workflow can use drawing marks, recognized attributes and visible geometry to distinguish webs, flanges, stiffeners, plates and clips.
Production utilities
Set part type, mark selected parts to be ignored and inspect parts before committing the drawing workflow.
MEMBER WORKFLOWS
One control center.
Seven focused routes.
01
Built-Up Member
Dedicated drawing logic for built-up assemblies, including member parts and repeated fabrication information.
02
Hot-Rolled Member
A focused processor for common hot-rolled assembly drawing routines.
03
Strut
Controlled drawing treatment for strut assemblies and their member-specific information.
04
Angle
A dedicated route for angle assemblies instead of a one-size-fits-all processor.
05
Cold-Formed
Drawing workflow for cold-formed members within the same STRIKE control center.
06
Sag Rod
Repeatable assembly drawing handling for sag rods.
07
Rod Brace
A specialized route for rod-brace assemblies and their drawing output.
HANDRAILSTRINGERIN DEVELOPMENT
THE WORKFLOW
Three controlled
production moves.
- 01
Pick the member route
Start with the processor that matches the assembly in front of you.
- 02
Set the drawing scope
Work on the active drawing or selected drawings from Document Manager.
- 03
Review before release
Inspect the generated drawing, make engineering judgments and continue the normal checking process.
PRODUCT STATUS FAQ
Understand the scope
before release.
Does it replace drawing checking?
No. The intended workflow accelerates defined production steps; professional checking and engineering judgment remain required.
Does it work on my Tekla version?
Tekla Structures 2020 is the current validation reference. Other versions will be listed only after testing.
When will access and license terms be announced?
Access, delivery, update and support terms will be published after the development build and release package are validated.
Is this custom automation for my company?
No. It is being developed as a focused STRIKE product. Project-based steel detailing is a separate service.
PRODUCT STATUS · IN DEVELOPMENTFollow STRIKE Auto Assembly
Follow STRIKE Auto Assembly
toward release.
Compatibility, access terms and release details will be published after the current development build is validated.
